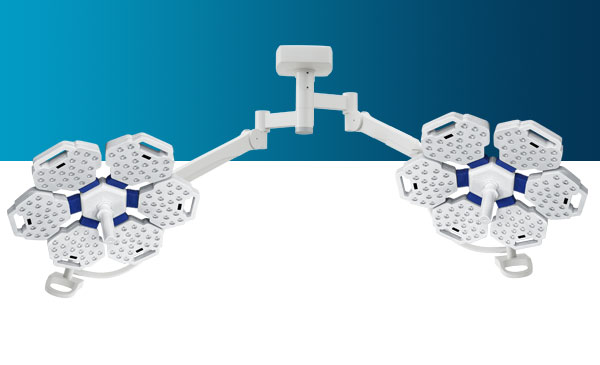

RIO SERIESKomax Surgical Lights

Light with German Arm

Equipped with advanced features

Endo Mode

Endo mode reduces the overall intensity of the surgical LED light to create a lower ambient illumination level in the operating room. This helps improve the contrast and visibility of the endoscopic images captured during the procedure.

Touch control panel - Standard

Illumination intensity adjustment
Color temperature adjustment
Endo mode
Memory Function
Power On-Off
Touch control panel on the light head

Touch control panel - Optional

Illumination intensity adjustment
Color temperature adjustment
Endo mode
Memory Function
Power On-Off
360 Degree Rotational Body

360 Degree rotation body in aluminum

This enhancement ensures the light arms maintain excellent stability and offer precise positioning in any direction, allowing effortless adjustments with full 360° rotation.

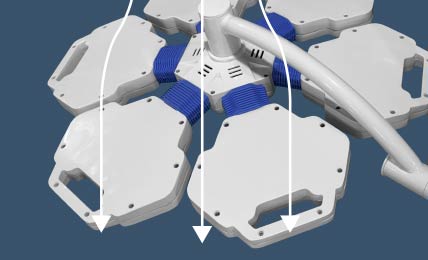

Meets modern laminar flow OR requirements

The open design of the light reduces the surface area that impedes the flow of air from the air supply ceilings, resulting in a less turbulent flow underneath the light.

Rotation Body in Aluminium

Main material: High strength integrated aluminium forming.
High quality bearing to ensure no drift and flexible rotation
Seamless welding ensures each arm supports a load of up to 80 kg.

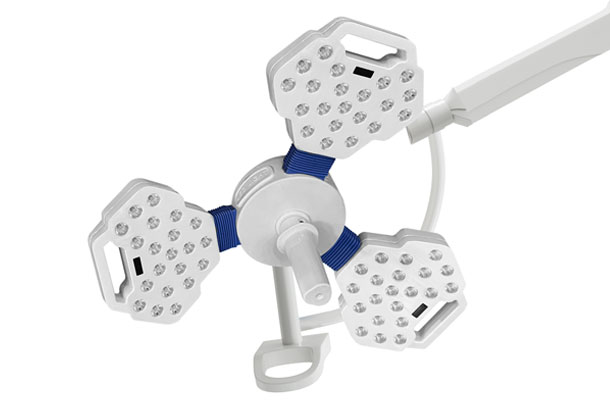

Rio LED Surgical Lights

Adjustable Colour Temperature

RIO LED lights are capable of producing a wide range of color temperatures between 4000-5000 K, allowing users to adjust the lighting to suit different purposes, environments, and preferences. Adjustable color temperature allows surgeons to fine-tune the lighting to match their specific needs for different procedures.

Adjustable Colour Temperature

Minimally Invasive Surgery

Unlike open surgery, minimally invasive procedures involve making several small incisions, typically spread over a wide area. Komax Light incorporates an innovative bionic "compound eye structure" lens design, offering an expansive 60cm light field. This wide coverage effectively illuminates the entire chest and abdomen, eliminating the need for frequent adjustments of the light head during surgery.

Complete Coverage of Chest and Abdomen

Complete Coverage of Chest and Abdomen

Minimally invasive surgery

Supramaximal effective light field

With high light intensity and large spot size, 1200mm depth of field provides good lighting without having to refocus when the surgical wound location changes. The light head can be positioned far away from the wound to ensure better laminar flow.

Supramaximal effective light field

Standard Specifications

Shadow less Light, Memory Function, High quality sterilizable handle, With special European design for ventilation of heat

Komax LED OT Lights

Adjustable Colour Temp.

Komax LED OT Lights

Memory Function

Komax LED OT Lights

Endo Mode

Size of Light Field

12-30 cm

Colour Temperature

4000-5000 K

Colour Rendering Index

93 RA

LED Life

>50000 Hrs.

Diameter of Light

650mm

Brightness Control

Capacitive Touch Panel

Dimming Range

10%-100%

Brightness Control

Capacitive Touch Panel

Power Supply

220V/50Hz AC

Colour of LED

White & Yellow (Double Colour)

Focusing

Adjustable

Monitor / Camera / Wireless Wall Controller

Yes (Optional)

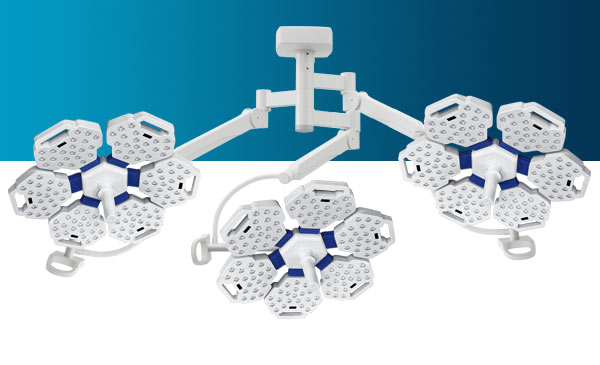

RIO Triple Dome

RIO Double Dome

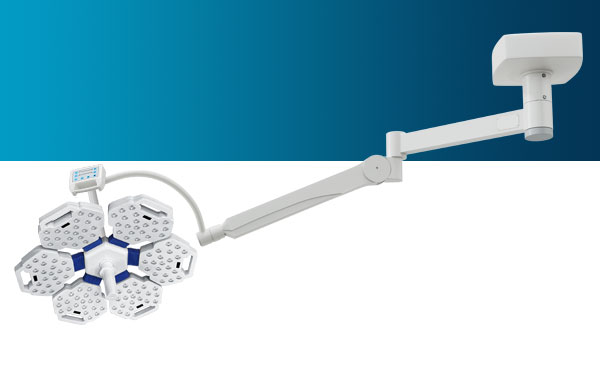

RIO Single Dome

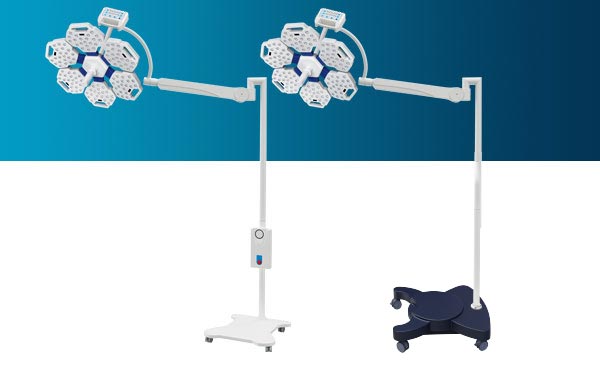

RIO Mobile

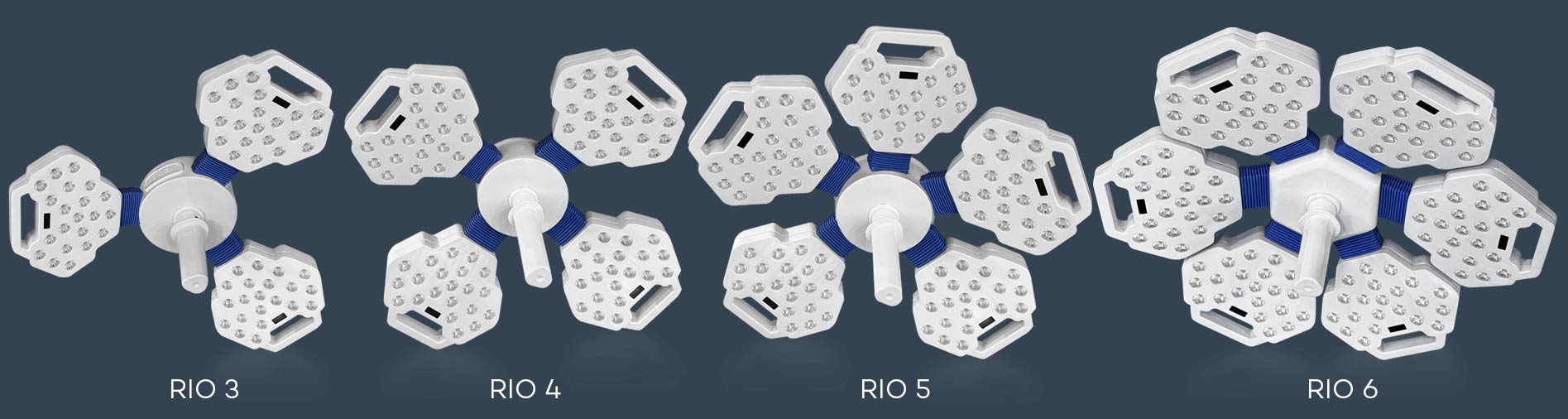

Variants

RIO 126

Intensity 1,60,000
Number of LED 126
Diameter of Light 650mm

RIO 105

Intensity 1,40,000
Number of LED 105
Diameter of Light 650mm

RIO LED Light 84

RIO 84

Intensity 1,30,000
Number of LED 84
Diameter of Light 650mm

RIO LED Light 63

RIO 63

Intensity (Lux) at 1 meter 1,00,000
Number of LED 63
Diameter of Light 650mm

 Model RIO 126 RIO 105 RIO 84 RIO 63
RIO LED Surgical Light 126 RIO LED Surgical Light 105 RIO LED Surgical Light 84 RIO LED Surgical Light 63
 Size of Light Head 650 mm
 Intensity at 1 meter 1,60,000 Lux 1,40,000 Lux 1,30,000 Lux 1,00,000 Lux
 Light Intensity Min : 00000 / Max : 1,60,000 Lux
 Color Temp. Range 4000-5000 k (Adjustable)
 Color Rendering Index 93 RA
 Type of Regulation Intensity Adjustable: 0-100%
Endo Mode: Only For Yellow Lights
Memory Functions (Pre Set):  25%, 50% & 75%
 Color of LED Combination of Yellow & White
 LED Life > 50000 Hrs
 Power Supply 220 V / 50 Hz AC
 Focusing Yes (Adjustable Manually)
 360° Rotation Yes
 Camera Optional
 Monitor Optional
 3rd Arm Optional
 Wireless Controller Optional
